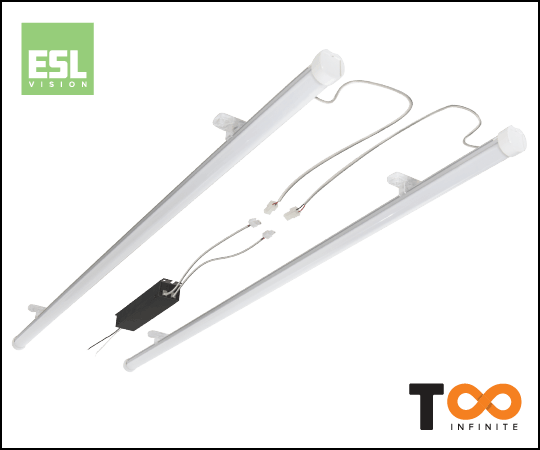

ESL: Linear LED Retrofit Kits
ESL Vision’s Ti LED Retrofit Kits are designed with electricians and contractors in mind. Installation is fast and easy, saving you time and money. A complete install only takes 3 minutes.
Ti Retrofit Kits use existing troffers so there is no need to access the ceiling plenum, and thanks to ESL’s patented system, they don’t use the tombstones, meaning there is no need to rewire the fixture. Individual lamps are secured using a unique rare-earth magnetic clip, which allows you to de-lamp and increase lumen options by controlling where the lamps are placed…all in just a matter of minutes.
Installation couldn’t be easier or faster with the Ti kits:
- Remove the existing ballast and disconnect the tombstones
- Install the LED driver and position LED bars using the magnetic clips
- Connect the LED bars to the driver using the Ti Quick Connects, and restore power
Watch a quick demo by clicking here.
In addition, ESL Vision has also developed Ti Retrofit Plates and Strips using the Ti LED bars, which also don’t require access to the ceiling plenum and are compatible with nearly all standard fixtures. The Ti Plates and Strips are pre-assembled in the USA and are available with optional daylight and occupancy sensors as well as emergency backup power packs. Simply remove existing internal wiring and secure the Ti Retrofit Plate or Strip to the fixture using the existing screw positions.
All Ti Retrofit Kits are extremely versatile, offering more linear retrofit options than any other product. The Ti kits are also future-proof by incorporating the ability to interface with DLC Network Lighting Control qualified systems.
- Kit Options Range from 2,261 – 16,899 lumens
- Available in 3000K, 3500K 4000K and 5000K
- 13W to 120W Options
- Up to 142 lm/W
- UL and DLC Listed
- 10/7 Year Warranty
- Ti Retrofit Kits Available in 2’x2’, 1’x4’ and 2’x4’ Options
- Ti Retrofit Strips Available in 4’ and 8’ Options
- Ti Retrofit Plates Available in 2’x2’ and 2’x4’ Options
